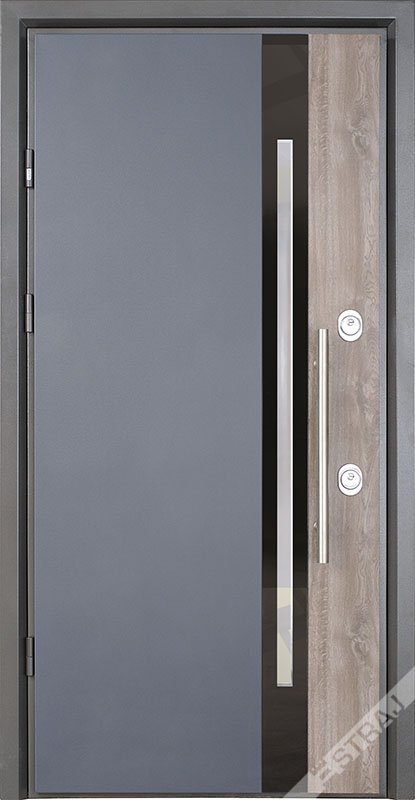

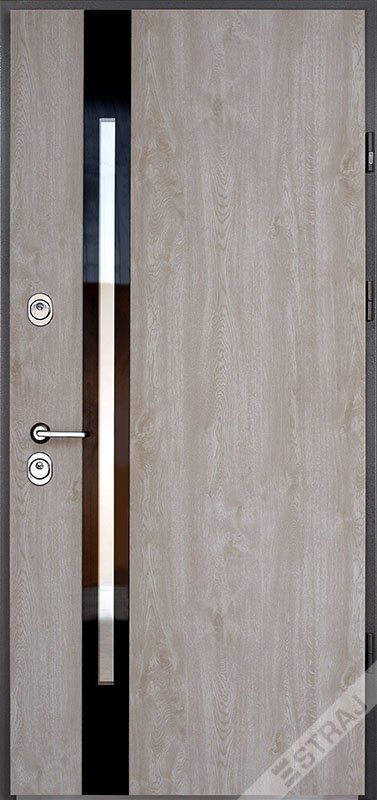

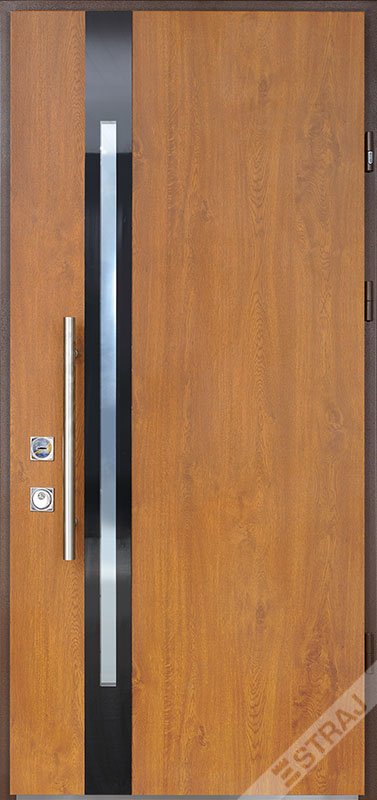

SLIM S

Slim S designer door is a modern model with an original design and a decorative glass insert with a glass unit. Thanks to its high level of thermal and sound insulation, it’s an excellent choice for private homes and mansions.

Standard door unit size:

870×2050
970×2050
Panel thickness – 85mm. The metal frame is based on a 1.2mm metal sheet and a U-shaped profile around the perimeter of the panel. Rigidity is provided by 2 vertical metal ribs and horizontal ribs in the hinge area, as well as welded metal “pockets” for the lock housings. The panel is insulated with a 50mm layer of mineral wool.

The exterior decorative finish has a “sandwich” structure made of laminated galvanized steel sheet and extruded polystyrene foam. The interior decorative panel is made of moisture-resistant MDF 12mm thick, covered with Vinorit PVC film. This multi-layer panel construction reliably retains heat indoors and has high thermal and sound insulation performance.

The edge of the panel is laminated to match the color of the interior decorative panel.

To prevent forced break-in, Straj Proof doors have 4 anti-break-in deadbolts. The panel is securely held by three conical hinges.

The Straj Proof door frame, 130mm deep, is made of 1.8mm cold-rolled steel and has 3 sealing contours. The frame is insulated around the perimeter with mineral stone wool, which has high density and moisture resistance. The inner rebate of the frame is separated from the outer part and has a separate layer of thermal insulation, creating a thermal break that prevents freezing and condensation.

The lock area of the frame is reinforced with an additional plate around the openings. The opening for the main lock’s latch has a device for adjusting the panel’s pressure. The anchor holes have aesthetic plugs.

The steel construction of the Straj Proof door is coated with heat-resistant powder paint.

Advantages
reliable construction of the door panel and frame;
3 anti-break-in deadbolts D-14mm;
thermal break prevents freezing and condensation formation;
laminated metal sheet exterior finish has high wear resistance;
reliable Italian locks and hardware;
a wide selection of various models;
meets EI60 fire resistance standard.
Slim S doors represent years of quality assembly tradition, reliable components, and trendy exterior design.
